Application Icon   Sidebar: Image Capture

The Import sidebar pane gives you access to two common sources of external data: scanning and email. Each section in this sidebar provides controls to import from any supported scanner or a compatible email client, e.g., Apple Mail or Outlook. This makes DEVONthink a reliable companion at home, in an office, in the hands of an archivist, and many other scenarios. We will cover the scanning controls in this section. We have also provided a more practical overview in Capturing Paper section of the In & Out chapter.

Archiving documents is an important function in many situations. The Image Capture section of this sidebar allows you to control compatible scanners or import images from connected cameras or iOS devices.

Devices

The Devices section allows you to choose an input device. Choosing a scanner offers different controls and options than selecting a connected iOS device or camera.

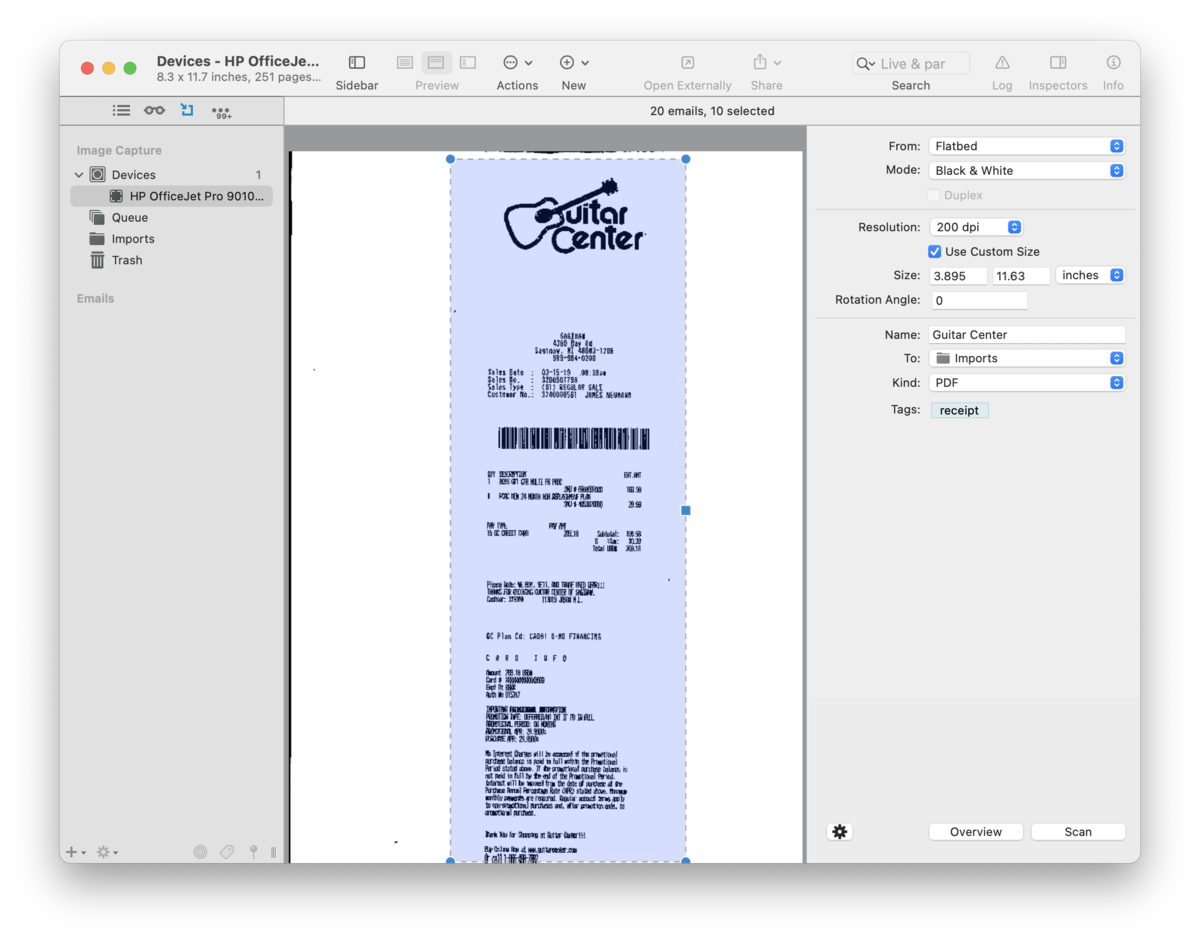

Selected Scanner: If you select a scanner you will be presented with controls and settings to scan your documents. This allows you to use your scanner directly in DEVONthink very efficiently. This interface should be familiar to anyone using Apple's Image Capture application or scanning in Preview.

  • Icon
    Overview: The overview of what's being scanned. When using a Custom Size you will define the scan area in this pane.
  • Icon
    From: Choose where you'll be inserting the paper into the scanner.
  • Icon
    Mode: Choose the color type: Black & White, Grayscale, or Color.
  • Icon
    Duplex: Enable double-sided scanning, if available.
  • Icon
    Resolution: Set the desired resolution of the scan. 300 dpi is the suggested resolution for most cases.
  • Icon
    Size: Choose a pre-defined page size or check Custom Size and manually change the scan area in the overview. Resize the scan area or even drag multiple scan areas on the same scan. You can also enter specific measurements. Switching to a pre-defined size will clear any custom scan areas.
  • Icon
    Orientation: Change the orientation of the final document.
  • Icon
    Name: Enter a name for the final document. If left empty, a date stamp will be used as an automatic name.
  • Icon
    To: Choose where to send the document: Imports, create a new binder or use an existing one, or choose a destination in a database.
  • Icon
    Destination: The chosen location in a database will be shown here. You can also choose a location to send binders to when saving.
  • Icon
    Kind: Choose the format for the final document.
  • Icon
    Tags: Enter optional tags to be applied to the document.
  • Icon
    OCR: Enable OCR for the scan, if desired.

Camera or Mobile Device: Clicking on a connected camera or mobile device displays an item list of photos to import. These items can be imported for a variety of uses. Additionally, for documents you've photographed, the images can be added to a scanning document (described below) and OCR can be done to create searchable PDFs. This can be very useful for everyday things like receipts to archiving historical documents.

  • Icon
    To: Choose to import items to Imports, into a new or existing binder.
  • Icon
    Thumbnails/Details: Switch between a thumbnail or a detailed list of photos. The size of thumbnails is controlled by the slider at the lower right corner of the window.
  • Icon
    Delete: Shown as a stop symbol, use this to delete selected images from the connected device. A warning will be displayed this action cannot be undone.
  • Icon
    Download: Download selected items to the location set in the To dropdown. Optionally, you can double-click items to import them.
  • Icon
    All: Download all the items on the connected device.

Queue

Select the Queue option to display the scanning queue where you can pre-define documents to scan. Define parameters for each document, including: Title, Destination, Type (PDF or Image), Separator, whether OCR is enabled, and optional Tags for the finished document. This section can be very useful when batch scanning. The following controls are shown in this view:

  • Icon
    Scanner: Choose an available scanner.
  • Icon
    Flatbed/Document Feeder: Choose where you'll be inserting the paper into the scanner.
  • Icon
    Document List: Defined documents and their parameters are listed here.
  • Icon
    Add/Delete: Add or delete new document definitions.
  • Icon
    Remove Sent/All: Contained in a popup menu, remove already processed or all documents from the list.
  • Icon
    Configure: Global scanner settings for color type, resolution, page size, and duplex scanning (double-sided, if available).

Imports

Containing individual scans or Binders, collections of scanned pages. Create or access existing binders and scanned pages in this section.

  • Icon
    Document List: A list of thumbnails of scanned images.
  • Icon
    Create new Binder: Create a new empty binder.
  • Icon
    Properties: Change properties of a selected scan or binder, e.g., where the scan will be sent, the title, type, tags, and optionally enabling OCR. You can also add a Author or Subject for PDF output.
  • Icon
    Edit: Change the orientation or make image modifications of a selected scan. Double-click a scanned page to display the image modification pane.
  • Icon
    Play: Play video imported from an iOS device.
  • Icon
    Delete: Delete the selected scan(s).
  • Icon
    Save: Sends the selected scans or binders to the To set in the Properties for each.

Select a specific binder in the sidebar to show a thumbnail view of the pages it contains. Rearrange the pages by drag-and-drop or drag pages from one document to another. Press the Sort button to use these options:

  • Icon
    Reverse Order: Reorder all pages from last to first.
  • Icon
    Shuffle Odd/Even Pages: Automatically switch odd and even pages
  • Icon
    Sort and Merge Documents: Choose two documents to merge their contents. One document is chosen as the starting odd page, the other as the starting even page. The pages are then interleaved into the current document.

Trash

Any scans or documents you've deleted from the scanning interface will appear here. When you have this selected, empty the trash with the button at the lower right corner of the window.
